Dual axis laser diameter measuring gauge for pipe LDM2050

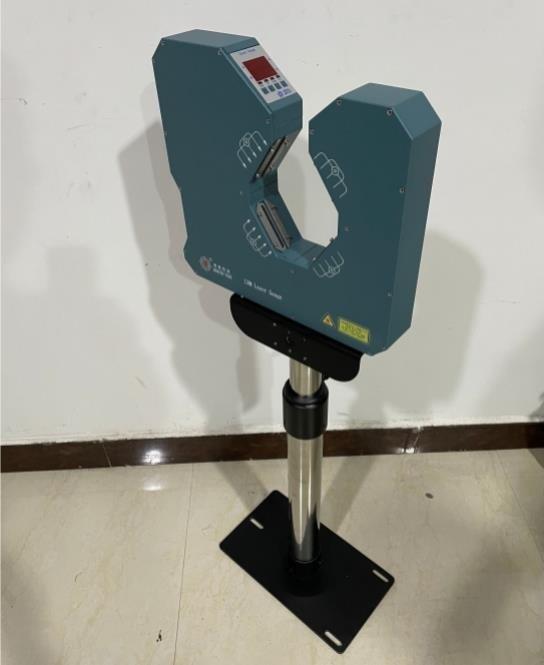

Grande immagine : Dual axis laser diameter measuring gauge for pipe LDM2050

Dettagli:

Place of Origin:	China Zhengzhou
Marca:	Mercury-tech
Certificazione:	CE ISO9001
Model Number:	LDM2050

Termini di pagamento e spedizione:

Minimum Order Quantity:	1 PCS
Prezzo:	USD
Packaging Details:	Carton or Wooden Box
Delivery Time:	In two days after getting your payment
Payment Terms:	T/T
Supply Ability:	500 Set/Sets per Month

Contatto

Descrizione di prodotto dettagliata

Color:	Blue	Material:	Aluminum alloy

Dual axis laser diameter measuring gauge for pipe LDM2050 LDM2030

Product Introduction

The LDM2050 and LDM2030 are new dual-axis diameter gauges developed by Mercury-tech Company. They have been improved in appearance, reduced in size and weight, and enhanced in measurement stability and environmental adaptability compared to the old LDM50XY and LDM25XY. The products are robust and durable, and easy to maintain. They are high-precision non-contact online measurement devices based on laser scanning principle, capable of simultaneously measuring the outer diameter in two directions (X-axis and Y-axis). They are suitable for measuring and controlling the outer diameter of metal wire materials, glass tubes, rubber hoses, wires and cables, etc. By measuring in both directions simultaneously and displaying the average value, they overcome the drawback of single-direction diameter gauges that cannot measure non-circular objects. They can simultaneously display the outer diameter and non-circularity of wires and tubes.

Product Parameters:

Model	Measuring Range	Measuring Accuracy
LDM-2050	0.2 - 45mm	±0.002mm
LDM-2030	0.2 - 25mm	±0.001mm

Dual axis laser diameter measuring gauge for pipe LDM2050 0

Product Name: dual-axis Laser Diameter Gauge

Measuring Method: Laser Scanning Method

Laser: Red Visible Semiconductor Laser

Laser Output Power: < 2mW

Working Voltage: ~220V ± 15% 50 - 60Hz

Operating Temperature: -10 - 40℃

Environmental Humidity: < 85% RH

Working Mode: Continuous

Power Consumption: < 30W

External Dimensions: 366*335*60mm

Repeatability: 0.5um

Display Refresh Rate: 50, 25, 13, 6, 3, 1 times/second (Selectable in display settings)

Alarm Function: Two groups of relay outputs, when the measurement data exceeds the tolerance, the alarm red light will be on and an audible and visual alarm can be connected.

Control Function: Achieves online control function, can control extrusion or traction.

Data Output Interface: RS485

True Sampling Rate: 800 times/S

Product Features:

1. High-precision measurement: With a dual-axis design, it can simultaneously measure the diameters of an object in two perpendicular directions, displaying the outer diameter on the X-axis, the outer diameter on the Y-axis, or the average value error, etc. This ensures the accuracy of the measurement results.

2. High stability: The equipment casing and internal optical components adopt a unique design solution, combined with precise assembly and manufacturing techniques, which have strong anti-interference ability and ensure long-term stable operation.

3. Non-contact measurement: Utilizing laser measurement technology, it avoids causing damage to the object being measured and is suitable for precise, fragile, and soft materials.

4. Real-time Monitoring: The 2050 features dual-screen display. The caliper has its own display for viewing in the measurement area. Additionally, it can be connected to a display controller, which can be installed in an embedded manner in a cabinet or at the operator's console for viewing and setting various parameters. It can display measurement data in real time and can also add data storage and analysis functions, facilitating quality control.

5. Easy integration: Supports multiple data output methods and can be integrated with other automated equipment or production lines to achieve fully automated measurement and control.

6. Signal Feedback: The PID analog control signal function measures the outer diameter and adjusts the screw speed of the extruder or the speed of the traction machine to achieve the purpose of automatic control of the outer diameter.
